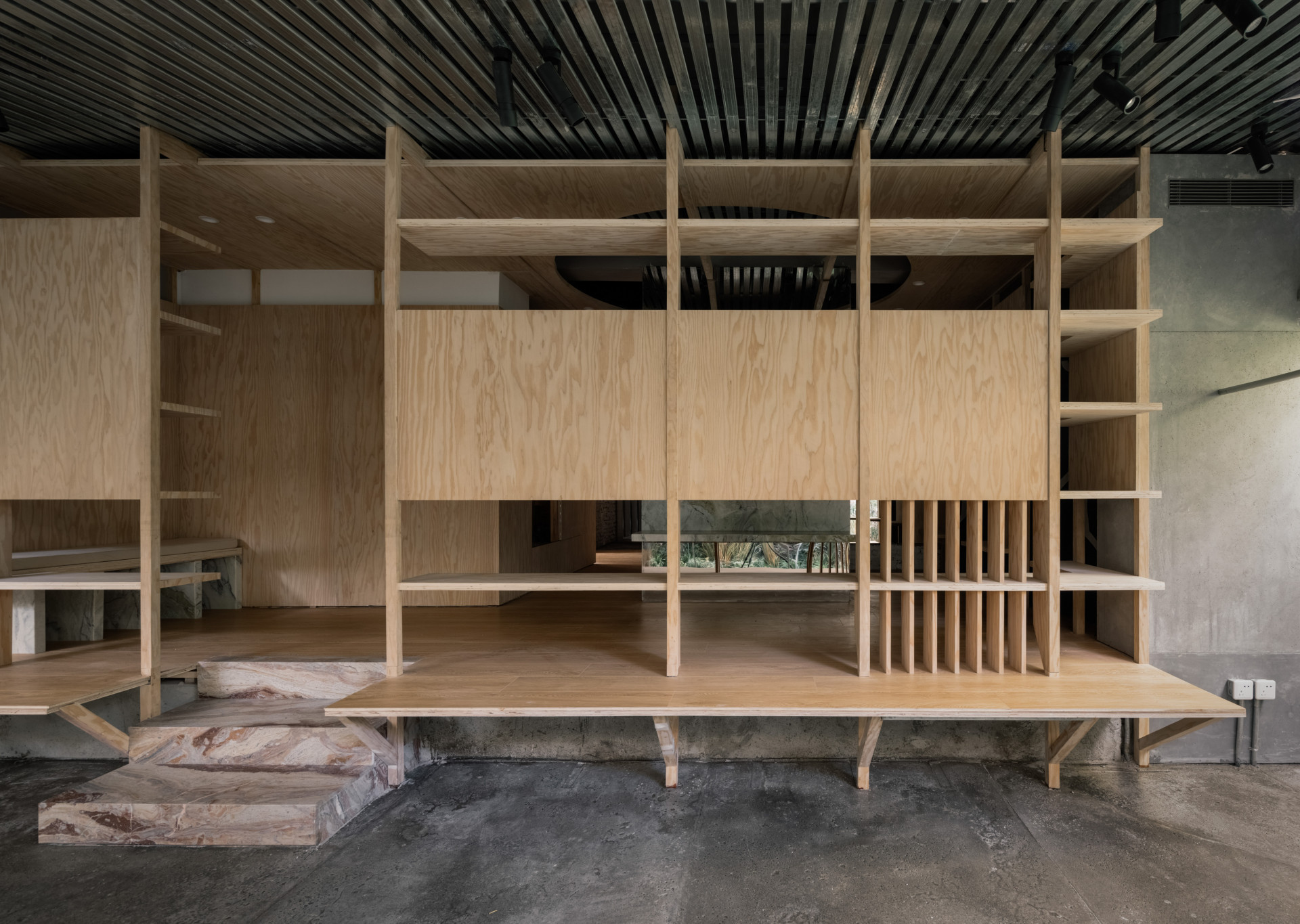

the wooden pavilion - Wen Studio

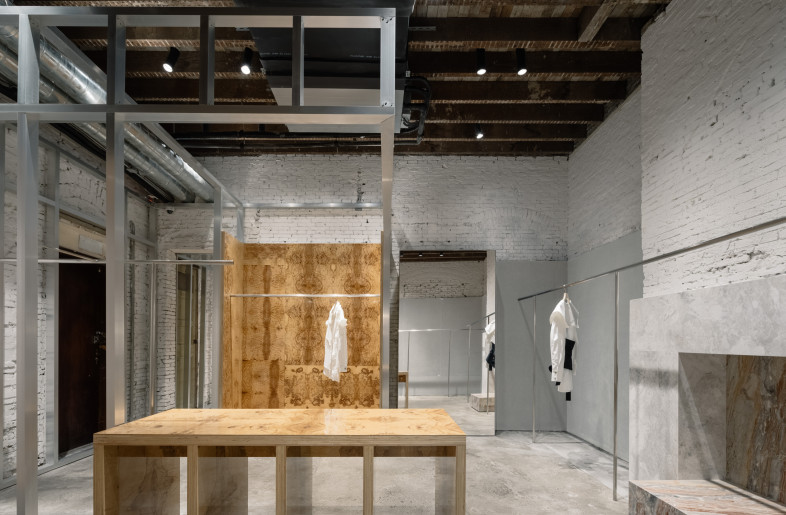

the room with inserted aluminum framework - Wen Studio

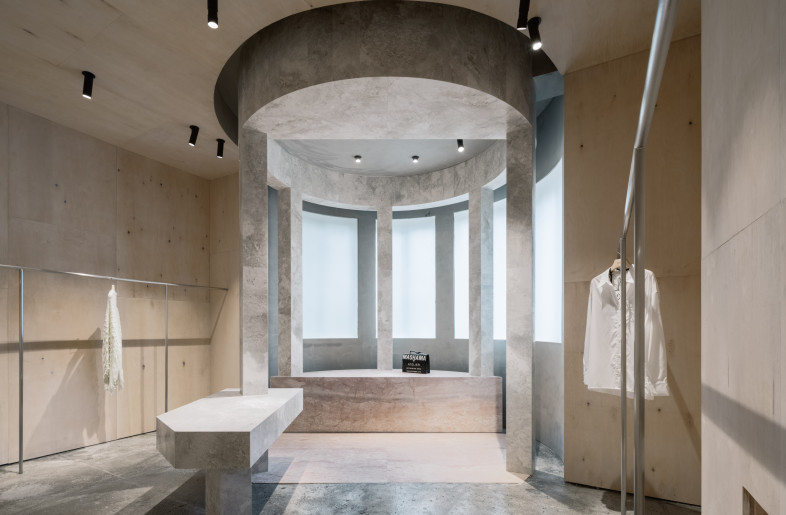

the room with a new marble chapel - Wen Studio
the wooden pavilion - Wen Studio

1 / 16

Comments
Innovation
Functionality
Creativity
Eco-Social Impact
Total
JURY VOTES
Multi-Brand Store
6.91
6.66
7.37
6.23
6.79
Sabine de Schutter
Sabine de Schutter Founder and CEO at Studio De Schutter
Striking addition the the skyline....
8
9
8
9.5
8.63
Kaan Alpagut
Kaan Alpagut Design Manager, Workplace Experience at The Lego Group
The spaces and functions flow beaut...
8.5
9.5
9
10
9.25
Alexander Fehre
Alexander Fehre Founder at Studio Alexander Fehre
8
8
8
8
8
Donald Strum
Donald Strum President at Michael Graves Design
This type of offset, blocky “Jenga”...
8.5
8.5
9
8.5
8.63
Hilda Impey
Hilda Impey Creative Partner and Founder at Hilda Impey Studio
8
8
7.5
8.5
8
Wenke Lin
Wenke Lin Founder and Design Director at BDSD Boundless Design
This building is a model of the com...
8.5
9
9
9
8.88
Yuko Tsukumo
Yuko Tsukumo General Manager at Nikken Sekkei
8
8.5
8.5
8.5
8.38
Monika Choudhary
Monika Choudhary Cofounder and Creative Director at Habitat Architects
8
8
8
8
8
Maud Capet
Maud Capet Associate Principal - Interior Design at OBMI
7
7.5
7
7
7.13
Robben Bai
Robben Bai Founder at Roarc Renew Architects
9
8
8.5
7
8.13
Client
SPMA
Floor area
225 ㎡
Completion
2021
Budget
EUR 280,000
Social Media
Instagram

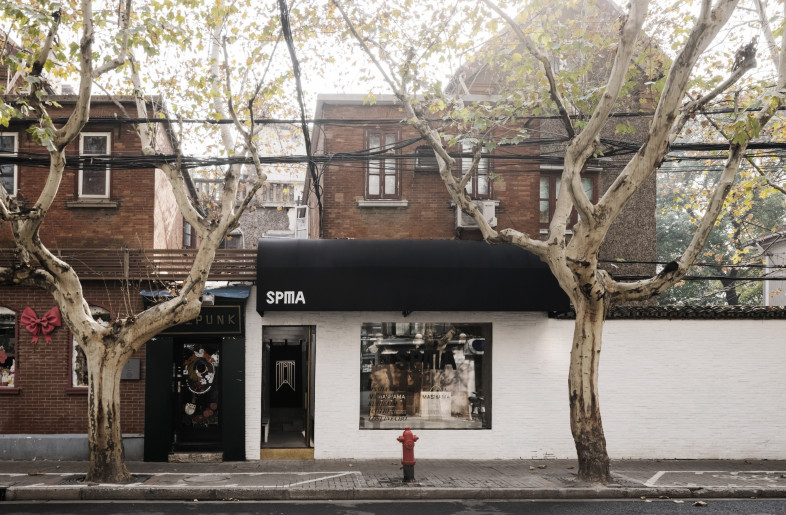

On ground floor of a 1930’s old house in Shanghai, the architect transformed the former residential space into a boutique retail space for SPMA.

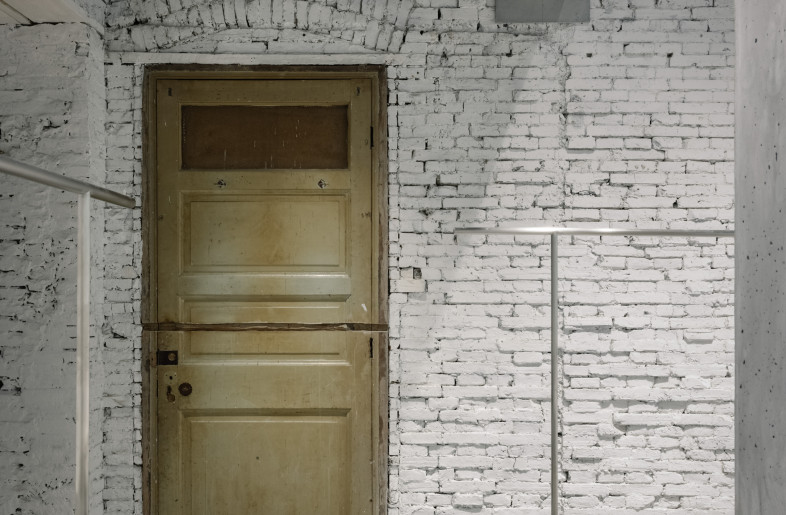

It is a typical lane house, the structure is made of load bearing brick walls and wooden floor. The layout is restricted by existing walls, with the rooms arranged one after another and give a strong sense of depth. The architect left the existing wooden ceiling and old doors intact, and the brick walls were preserved with white limewash.

The renovation is not only about refurbishing the surface, also involves a series of strategy to intervene into the space based on the internal structure and the characteristics of the building itself. The architect inserted volumes and components made of various new material into the house without touching the existing walls, combining the texture layers of the old building to expose the narrative between the clothing and architectural space.

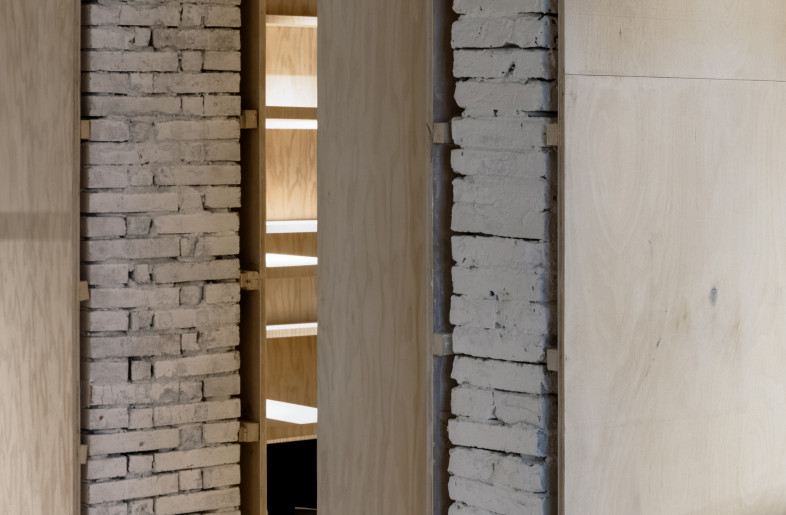

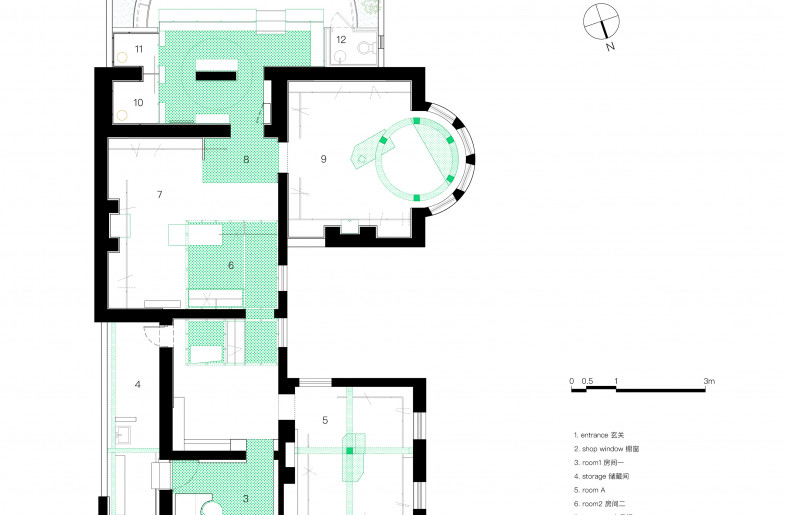

In the process of renovating the old house with the new texture, the construction marks and back supports were revealed. Just like the exposed stitching, lining and stitching on clothes, the methods of building repairs and the new insertion are directly displayed. By employing the freestanding volumes to obscure the original room system, three “rooms" of different materials were placed in the central area of the house to form several areas, reorganized the layout and the circulation of the house to meet the retail requirements.

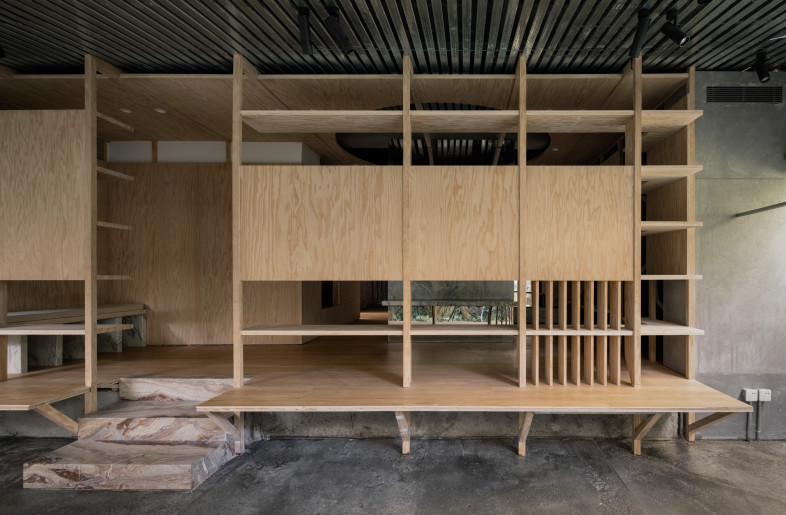

The deep and narrow passage naturally evolved into a twist but planned transit path. The new aluminum framing “room" connects two original rooms, reshaping the route while retaining openness. The dressing room, and display shelf system are integrated into the new wooden room, extending from the inside of the building to the backyard garden, creates a strong contrast with the gloomy rooms in the old building.

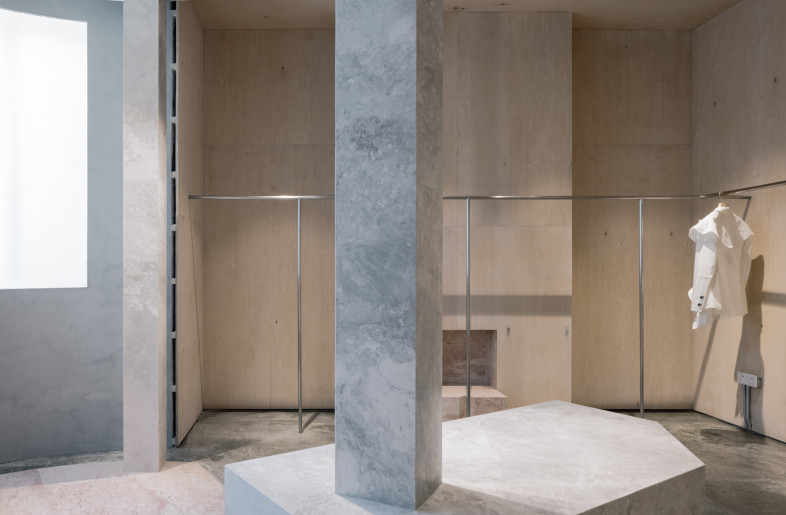

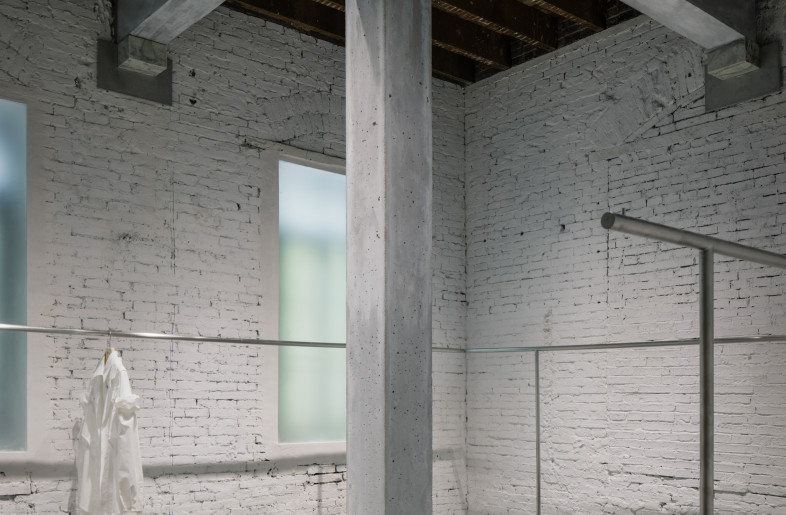

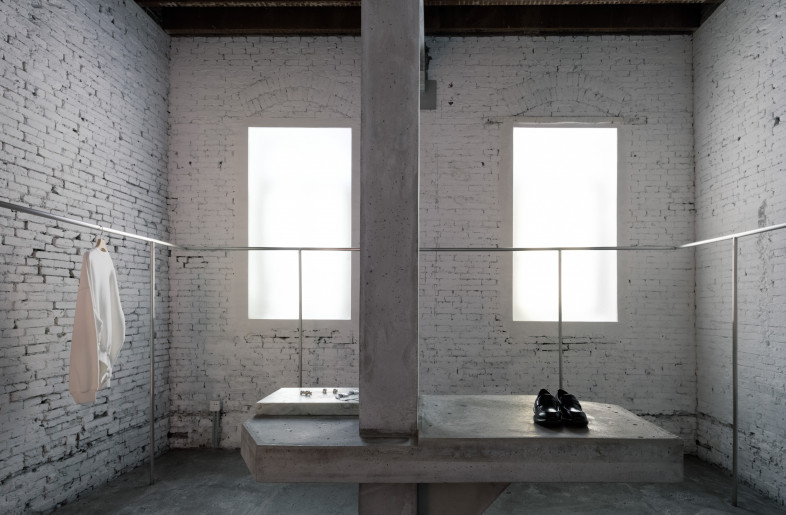

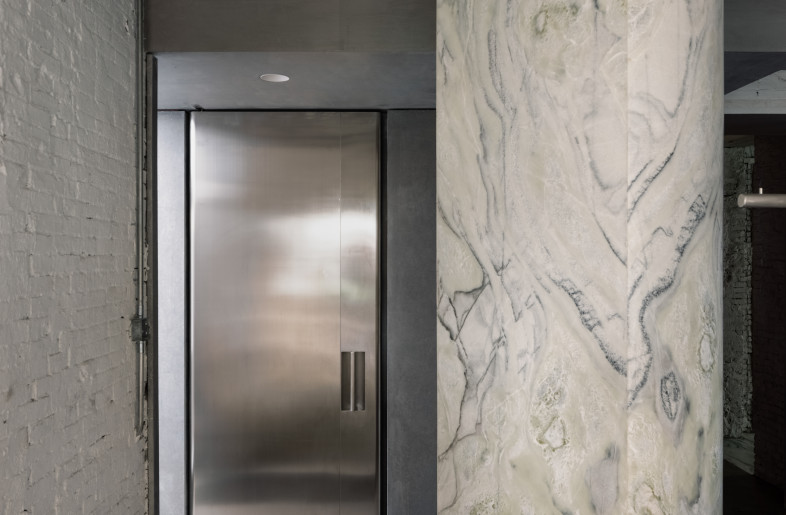

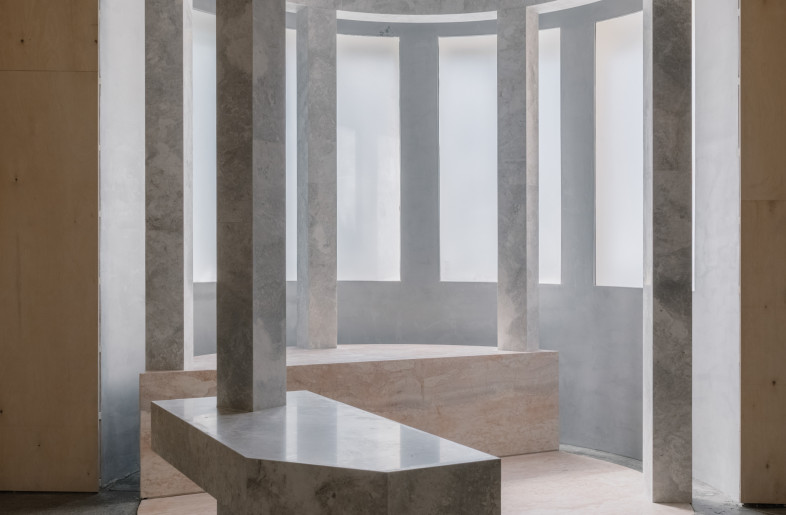

In the other two independent rooms, the architect Inserted freestanding components. The rough concrete collides connecting with the old brick wall,demonstrate the power and connection logic of architecture. The marble columns with classical temperament echo the original round window in the room. The stone pillars and concrete beams form a T-shaped structure to support the stainless-steel plate and the sunshine board to make a lightweight ceiling. The translucent material allows more light to enter the corridor.

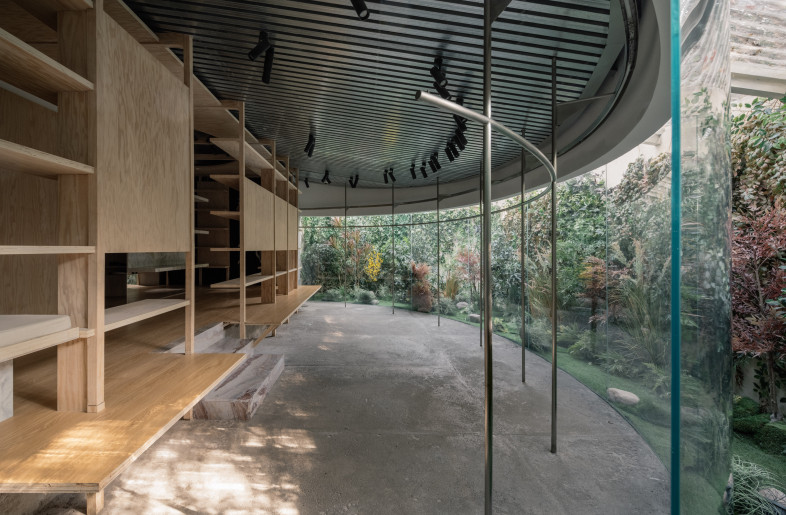

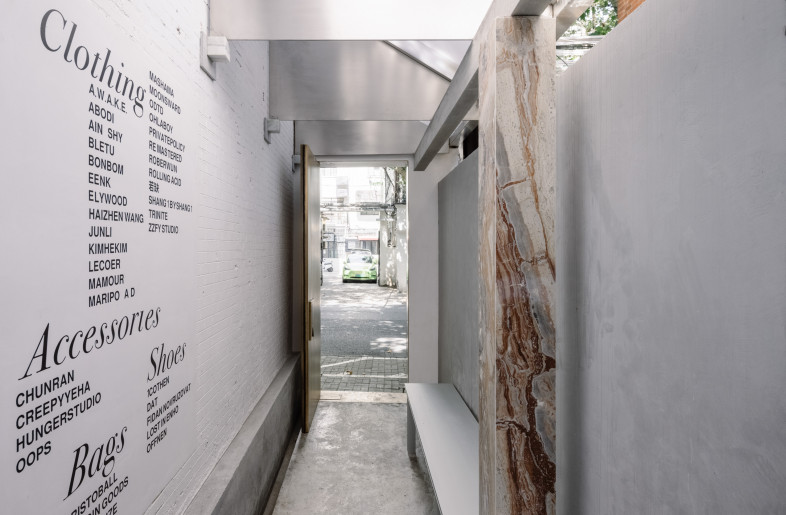

The architect treats the backyard and the entrance side corridor as two tiny pavilions, “installing" on the heavy brick building. The architect revealed the structural attributes of the old building and inserted free standing structures which are integrated and adapted to the site, combined with the rich layers of clothes, to bring a new internal landscape to this old building.
