Perched on a steep 100% slope, the house respects the natural terrain and avoids deep excavation into the slate rock. Lightly elevated on slender concrete screens, it preserves the site’s profile and blends into its surroundings. Access is from the upper level, where the house appears as a compact, closed volume. As the terrain drops, it seems to float—supported by the central core and façade walls.
A cantilevered staircase links pedestrian access and parking to the main terrace, which flows directly from the open kitchen-dining area. Four large sliding glass doors allow a fluid transition between indoors and outdoors, framing views of the valley and surrounding trees.
On the lower floor, the central core houses the staircase, pantry, and bathroom, freeing the perimeter for continuous kitchen, living, and viewing areas. A built-in bench along the glazed façade invites reflection. The entry sequence is reimagined: a cantilevered slab—an extension of the kitchen—hosts a concrete and ceppo di Gré stone dining table, welcoming guests around food and conversation.

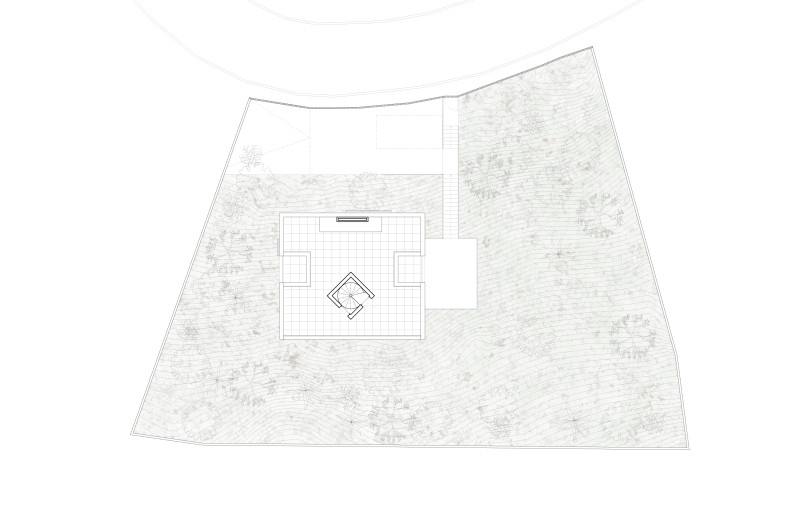

A double-height void and a circular stair opening create vertical and spatial continuity, leading to the rooftop via a square turret rotated 45°, preserving flow and views. The top floor connects two balconies and provides access to three bedrooms and a bathroom. The master suite includes a walk-in closet and ensuite, with sliding partitions for flexible use. Even the shower is oriented to capture views while maintaining privacy.
The design follows the golden ratio in plan and elevation, achieving a balance of simplicity and elegance. Three façades are restrained, with small, strategic openings and lattice screens for privacy and sun control. In contrast, the valley-facing façade is fully open and subtly distinct with a pale yellow tone that sets it apart from the house’s earthy palette.
The house features a radiant floor heating system in all rooms, with an efficient aerothermal system providing heating and cooling, powered by photovoltaic panels on the roof. Additional sustainable strategies include an external thermal insulation system without thermal bridges (even the underside of the ground floor slab is insulated), natural cross ventilation in all rooms, carefully controlled orientation and placement of openings (the glazed valley-facing façade receives minimal direct sunlight), a rainwater collection and reuse system, and a selection of simple, locally sourced materials. These elements contribute to an environmentally conscious home with high energy performance. Furthermore, the terrain remains largely untouched, with only two trees removed out of more than forty on-site.
The first step—an imposing piece of local rock—pays homage to Carlo Scarpa’s stair designs, reflecting the project’s values: sensitivity to place, spatial innovation, landscape integration, and sustainability.
Casa Magarola
Raul Sanchez Architects
Gold

1 / 18
Designer
Client
Francesco and Sandra
Floor area
175 ㎡
Completion
2024
Budget
400000€
